Product Introduction

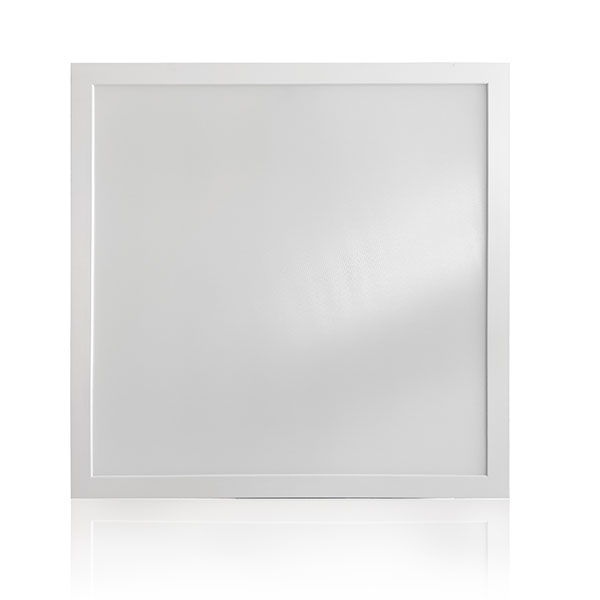

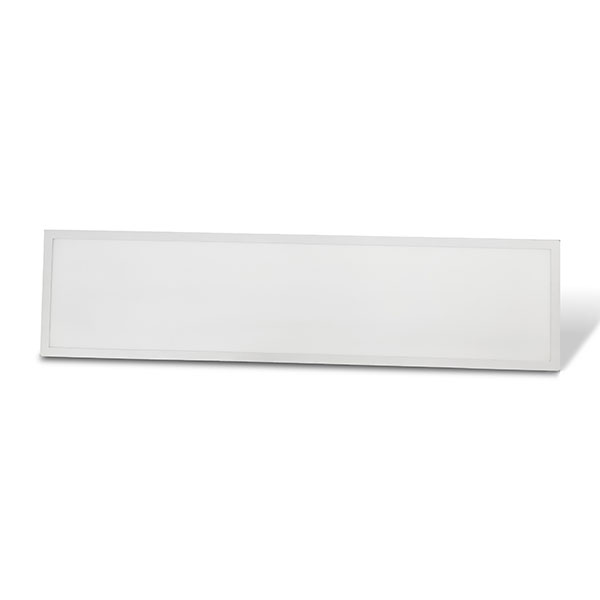

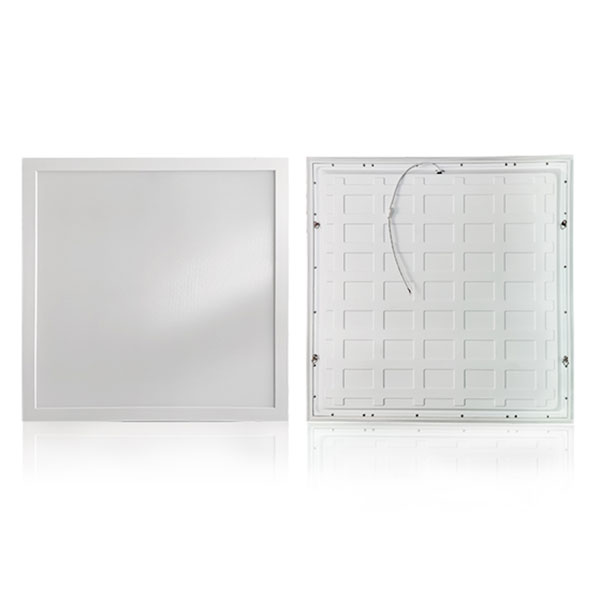

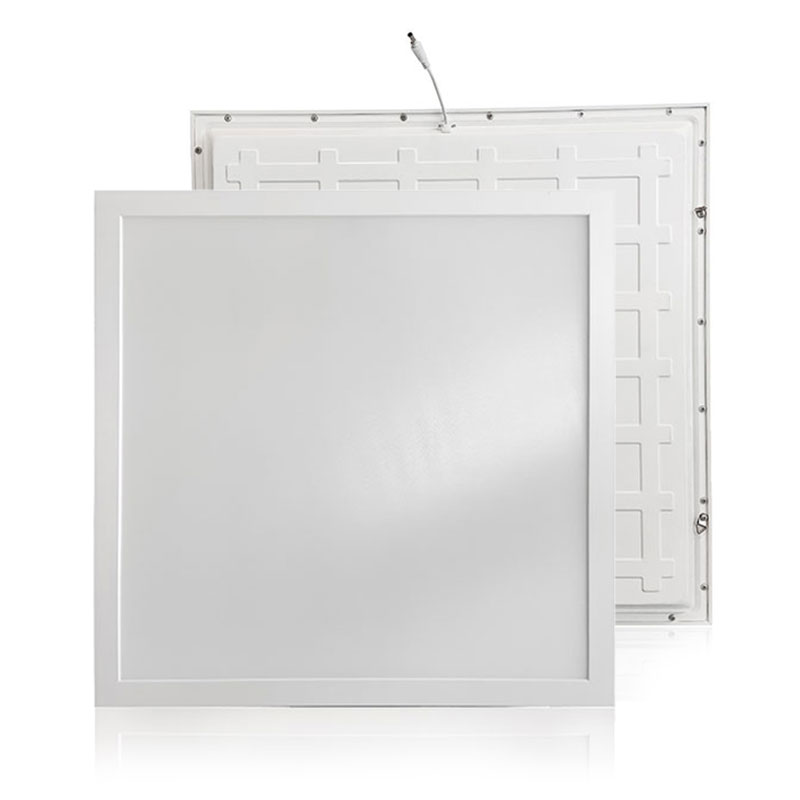

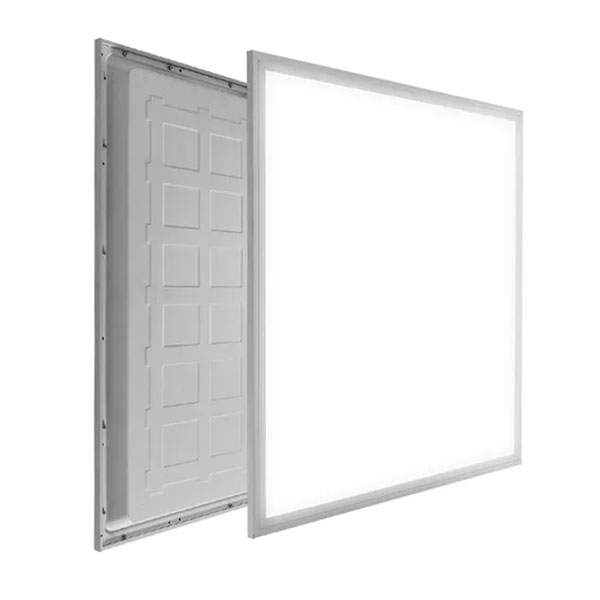

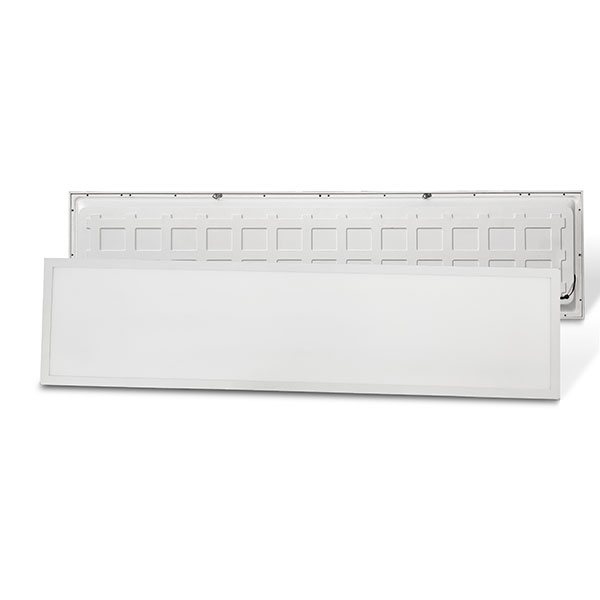

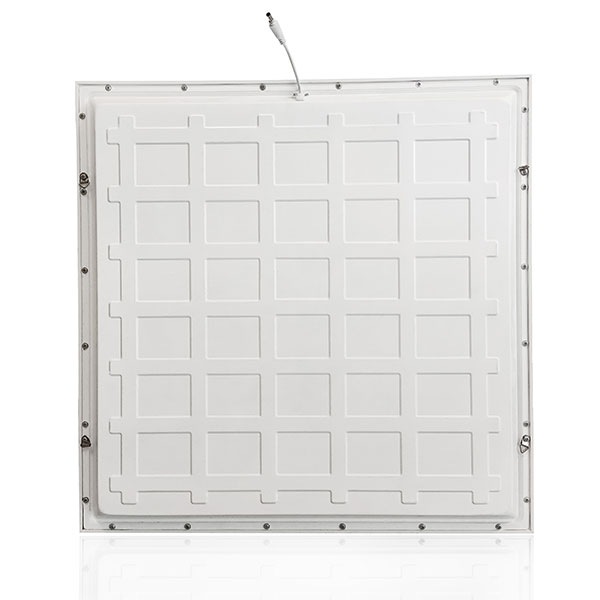

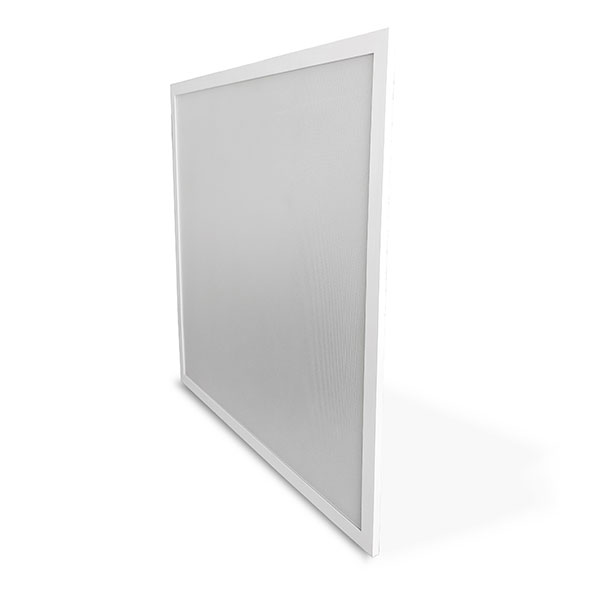

Ce back lit led panel light supplier Supermarket Mall Living Room Led Panel 40w White Backlit Aluminum Surface Mounted Led Back Light Panel
| Item NO. | Power | Size | LED | Lumens | PF | CRI | Voltage | Life Span | Warranty |
|
WS-PL3030B-20 |
20w | 300*300*30mm | SMD2835 | 110-180lm/w | 0.9 | 80 | AC100-240V | 30000hours | 2 years |
|
WS-PL3060B-24 |
24w |
300*600*30mm |
SMD2835 |
110-180lm/w |
0.9 |
80 |
AC100-240V |
30000hours |
2 years |
|
WS-PL30120B-55 |
55w |
300*1200*30mm |
SMD2835 |
110-180lm/w |
0.9 |
80 |
AC100-240V |
30000hours |
2 years |
|
WS-PL6060B-48 |
48w |
600*600*30mm |
SMD2835 |
110-180lm/w |
0.9 |
80 |
AC100-240V |
30000hours |
2 years |
|
WS-PL6060B-60 |
60w |
600*600*30mm |
SMD2835 |
110-180lm/w |
0.9 |
80 |
AC100-240V |
30000hours |
2 years |
|
WS-PL60120B-60 |
60w |
600*1200*30mm |
SMD2835 |
110-180lm/w |
0.9 |
80 |
AC100-240V |
30000hours |
2 years |
|
WS-PL60120B-72 |
72w | 600*1200*30mm |
SMD2835 |
110-180lm/w |
0.9 |
80 |
AC100-240V |
30000hours |
2 years |
Other Custom Option:
A. Isolated driver and Non-isolated driver
B.Voltage:AC100-240V/ AC 90-130V/AC180-240V(AC 100-277V,AC 120-347V)
C.Custom dimmable available(triac dimmable,0-10v dimmable),CCT&Power selectable version
D.Human sensor led panel and voice sensor panel,emergency led panel available
E.Luminous Flux:100-110lm/w 120-130lm/w 140-150lm/w 160-170lm/w 170-180lm/w(the brightnest)
