Product Introduction

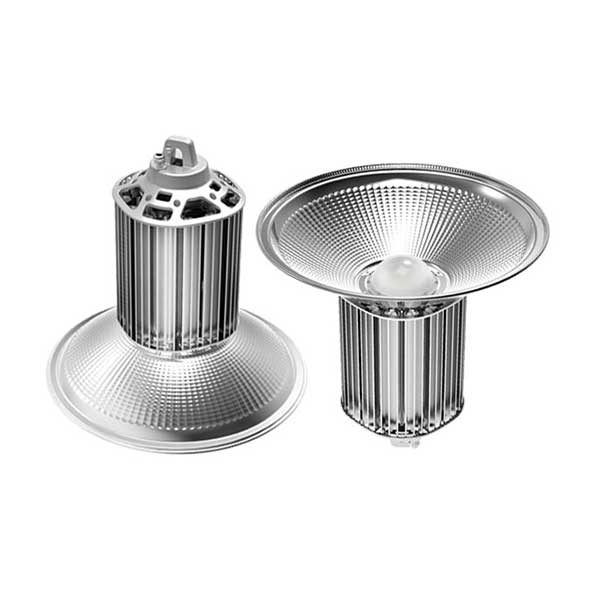

High lumen IP65 factory warehouse industrial Aluminium 60w 80w 100w 150w 200w 300w UFO led high bay light
High lumen IP65 factory warehouse industrial Aluminium 60w 80w 100w 150w 200w 300w UFO led high bay light
High lumen IP65 factory warehouse industrial Aluminium 60w 80w 100w 150w 200w 300w UFO led high bay light
LED HIGH BAY LIGHT
| Model NO. | WS-HB05-60 |
WS-HB05-80 |
WS-HB05-100 |
WS-HB05-150 |
WS-HB05-200 |
WS-HB05-300 |
||||||
|
Power(W): |
60W | 80W | 100W | 150W | 200W | 300W | ||||||
|
Led lamps quantity: |
120PCS 3020 | 160PCS 3020 | 200PCS 3020 | 300PCS 3020 |
130PCS 3030 |
196PCS 3030 |
||||||
|
Lumen: |
130LM/W |
130LM/W |
130LM/W |
130LM/W |
130LM/W |
130LM/W |
||||||
|
Input Voltage: |
85-265V/AC |
85-265V/AC |
85-265V/AC |
85-265V/AC |
85-265V/AC |
85-265V/AC |
||||||
|
Lighting Angle: |
150° |
150° |
150° |
150° |
150° |
150° |
||||||
|
Bulb size: |
D182*259 | D182*259 | D182*291 | D239*317 |
D222*367 |
D284*372 |
||||||
|
Color: |
Warm White 2800-3200K,Neutral White 4000-4500K,Cold White 6000-6500K | |||||||||||
|
Material |
Aluminum |
|||||||||||
|
Base type |
AC 85-265V input | |||||||||||
|
Life |
50,000 hours |
|||||||||||
|
Waterproof |
non-waterproof IP20 |
|||||||||||
|
Features |
EnvironmentallyFriendly,High CRIHigh Efficient,Energy SavingLong Life .Durability and Safe |
|||||||||||
|
Applications |
yards, supermarkets, streets, warehouses, garages, stadiums, stadiums, factories, gas station, training ground, Exhibition Hall, furniture store, train Station, etc. |
|||||||||||
Parameter:
Product name: copper pipe aluminum LED high bay light
Input voltage: AC100-265V
LED type: SMD3030
Protection grade:IP20
Color temperature: Warm white (3000K) / White (5000K)
Color rendering index: ≥83Ra
Shell material:Aluminum + PC
Beam angle:120°
Lifespan:＞50000hours
LED working temperature：-70℃-40℃
Product size: 230*96mm (100-150W) / 290*96mm (200-240W)
Features：
*High Efficiency Chips: Our UFO LED high bay lights use high brightness SMD 2835 LED chips, uniform light, no dark angle, low light decay, energy saving and environmental protection.
*Wire Length: The length of the power cord is 1.5M.
*Heat Dissipation Design: The shell of the lamp is high quality aluminum materials, which adopts high tech 3D heat flow channel design, convection radiator, turbo-type heat dissipation, all-round heat dissipation, effectively extend the service life of the lamp.
*IP65 Waterproof: Fully sealed design, IP65 waterproof, can adapt to a variety of temperature and humidity inside and outside the environment.
*Dimming Function: With 0-10V dimming function, there is a 40cm dimming cable in the lamp holder, which can adjust the brightness according to your needs. This product is not equipped with a dimmer when shipped, please buy it by yourself.
*High Color Rendering: The color rendering index of LED lamp beads can reach more than 83Ra, so that the surrounding environment can be displayed in real and natural colors.
*Stable Performance: LEDs start instantly. Compared with traditional lamps, LED lamps do not need to be preheated to start, and they light up as soon as they are turned on. It is convenient and quick to use. At the same time, the lamps have low voltage output and are safer.
*QualityLens: High-quality and high-transmittance lampshade with high light transmittance, frosted treatment makes the reflected light softer and more uniform, durable, waterproof, and high temperature resistant.
*Power Box: adopts integrated molding appearance, thick waterproof rig, good waterproof effect, more durable.
Applications:
Our UFO LED high bay light can be used for yards, supermarkets, streets, warehouses, garages, stadiums, stadiums, factories, gas station, training ground, Exhibition Hall, furniture store, train Station, etc.
